This notebook bridges symbolic derivations to executable code and interactive visualization. We demonstrate:
- I❤️LA Export — Translating symbolic expressions to the I❤️LA math-to-code compiler notation
- Interactive Widgets — Exploring how element properties vary with material and geometric parameters
- Visualization — Plotting stiffness, condition numbers, and eigenvalue behavior
13.1 Part A: I❤️LA Export
I❤️LA (Automatically generated fast Linear Algebra) is a math-to-code compiler that takes human-readable mathematical notation and generates optimized C++ code for numerical computation.
Our symbolic FEM workbench can export matrices and expressions in I❤️LA notation for further compilation. This bridges the gap between symbolic derivation and production-grade numerical kernels.
13.1.1 1D Bar Stiffness in I❤️LA
# Build the 1D bar problem
problem_1d = build_bar_1d_local_problem()
print("=== 1D Bar Element Stiffness Matrix ===")
print()
print(iheartla_matrix_definition("K_e", problem_1d["Ke"]))
print()
print("=== 1D Bar Element Load Vector ===")
print()
print(iheartla_matrix_definition("f_e", problem_1d["fe"]))=== 1D Bar Element Stiffness Matrix ===
K_e = \begin{bmatrix} A*E/L & -A*E/L \
-A*E/L & A*E/L \end{bmatrix}
=== 1D Bar Element Load Vector ===
f_e = \begin{bmatrix} L*q/2 \
L*q/2 \end{bmatrix}13.1.2 2D Poisson Triangle in I❤️LA
# Build the 2D Poisson problem
problem_2d = build_poisson_triangle_p1_local_problem()
print("=== 2D Poisson Triangle (Unit Right Triangle) ===")
print()
print(iheartla_matrix_definition("K_e", problem_2d["Ke_unit_right_triangle"]))
print()
print("=== 2D Poisson Load Vector ===")
print()
print(iheartla_matrix_definition("f_e", problem_2d["fe_unit_right_triangle"]))=== 2D Poisson Triangle (Unit Right Triangle) ===
K_e = \begin{bmatrix} 1 & -1/2 & -1/2 \
-1/2 & 1/2 & 0 \
-1/2 & 0 & 1/2 \end{bmatrix}
=== 2D Poisson Load Vector ===
f_e = \begin{bmatrix} f/6 \
f/6 \
f/6 \end{bmatrix}13.2 Part B: Interactive Parameter Exploration
Using matplotlib and optional ipywidgets, we explore how element properties change with parameters.
13.2.1 1D Bar Stiffness vs Length
# Create a numpy function from the symbolic Ke
ke_fn = sp.lambdify(
(problem_1d["L"], problem_1d["E"], problem_1d["A"]),
problem_1d["Ke"][0, 0], # K_e[0,0] = EA/L
"numpy"
)
def plot_stiffness_vs_length(E_val=200e9, A_val=1e-4):
"""Show how element stiffness scales with element length."""
lengths = np.linspace(0.01, 2.0, 100)
k11_vals = [ke_fn(L, E_val, A_val) for L in lengths]
fig, ax = plt.subplots(figsize=(10, 5))
ax.plot(lengths, k11_vals, linewidth=2, color='steelblue')
ax.set_xlabel('Element length L [m]', fontsize=12)
ax.set_ylabel('K_e[0,0] = EA/L [N/m]', fontsize=12)
ax.set_title(f'Element Stiffness vs Length\n(E={E_val/1e9:.0f} GPa, A={A_val*1e4:.2f} cm²)', fontsize=14)
ax.grid(True, alpha=0.3)
plt.tight_layout()
plt.show()
# Static plots with different parameters

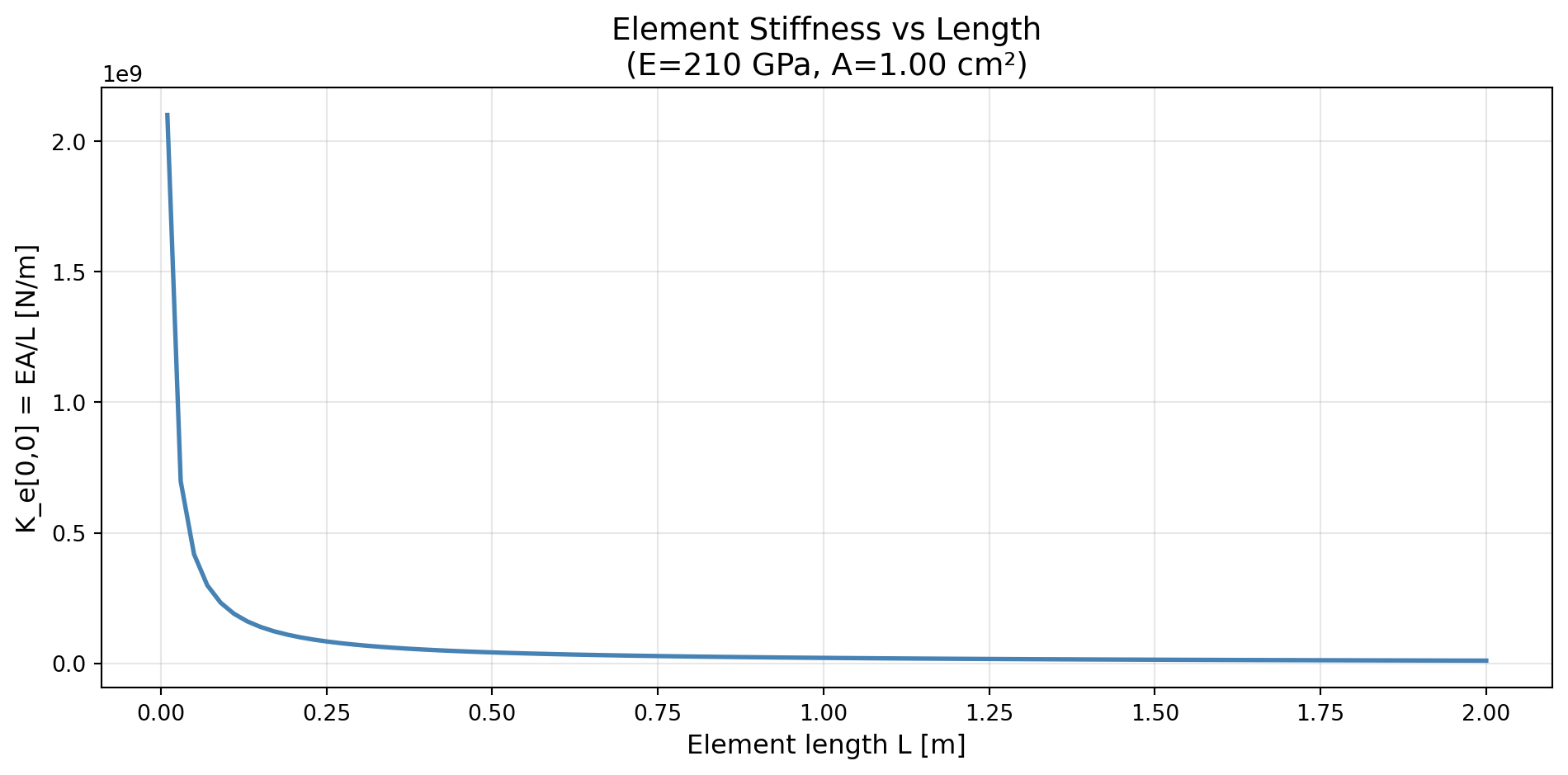

print("Steel bar (E=210 GPa, A=1×10⁻⁴ m²):")
plot_stiffness_vs_length(E_val=210e9, A_val=1e-4)

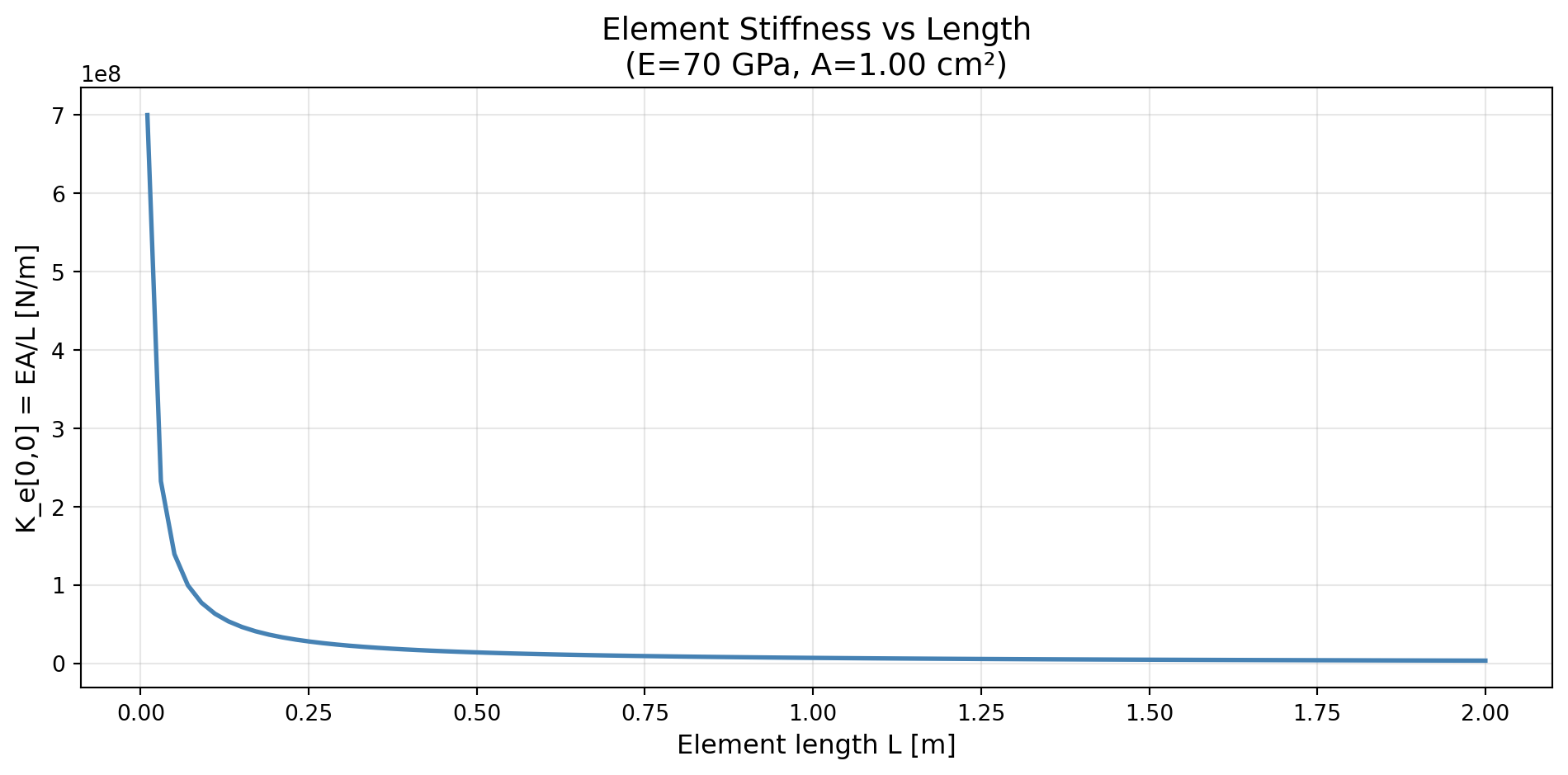

print("\nAluminum bar (E=70 GPa, A=1×10⁻⁴ m²):")
plot_stiffness_vs_length(E_val=70e9, A_val=1e-4)Steel bar (E=210 GPa, A=1×10⁻⁴ m²):
Aluminum bar (E=70 GPa, A=1×10⁻⁴ m²):
13.2.2 Interactive Widgets (if ipywidgets available)
try:
from ipywidgets import interact, FloatSlider
@interact(
E_val=FloatSlider(min=1e9, max=400e9, step=10e9, value=200e9, description="E [Pa]"),
A_val=FloatSlider(min=1e-5, max=1e-2, step=1e-5, value=1e-4, description="A [m²]"),
)
def interactive_1d_stiffness(E_val, A_val):
plot_stiffness_vs_length(E_val, A_val)
except ImportError:
print("ipywidgets not available — using static plots above.")
print("Install with: pip install ipywidgets")13.3 Part C: Interactive Triangle Deformation
Explore how the element stiffness matrix changes as we vary the triangle shape.
# Compile the 2D Poisson Ke into a numpy function
geom = problem_2d["geometry"]
ke_fn_2d = sp.lambdify(
(geom.x1, geom.y1, geom.x2, geom.y2, geom.x3, geom.y3),
problem_2d["Ke"],
"numpy"
)
# Define several triangle configurations
configs = [
("Unit right triangle", (0, 0, 1, 0, 0, 1)),
("Equilateral", (0, 0, 1, 0, 0.5, np.sqrt(3)/2)),
("Isoceles right (2×2)", (0, 0, 2, 0, 0, 2)),
("Flat/degenerate", (0, 0, 1, 0, 0.5, 0.01)),
]
print("=== Element Stiffness Matrix Properties by Triangle Shape ===")
print(f"{'Shape':<25} {'trace(K_e)':>12} {'max|K_e|':>12} {'cond(K_e)':>12}")
print("-" * 62)
for name, (x1, y1, x2, y2, x3, y3) in configs:
Ke = np.array(ke_fn_2d(x1, y1, x2, y2, x3, y3), dtype=float)
trace = np.trace(Ke)
max_val = np.max(np.abs(Ke))
cond = np.linalg.cond(Ke)
print(f"{name:<25} {trace:>12.4f} {max_val:>12.4f} {cond:>12.2e}")=== Element Stiffness Matrix Properties by Triangle Shape ===
Shape trace(K_e) max|K_e| cond(K_e)
--------------------------------------------------------------
Unit right triangle 2.0000 1.0000 3.23e+32
Equilateral 1.7321 0.5774 1.91e+16
Isoceles right (2×2) 2.0000 1.0000 3.23e+32

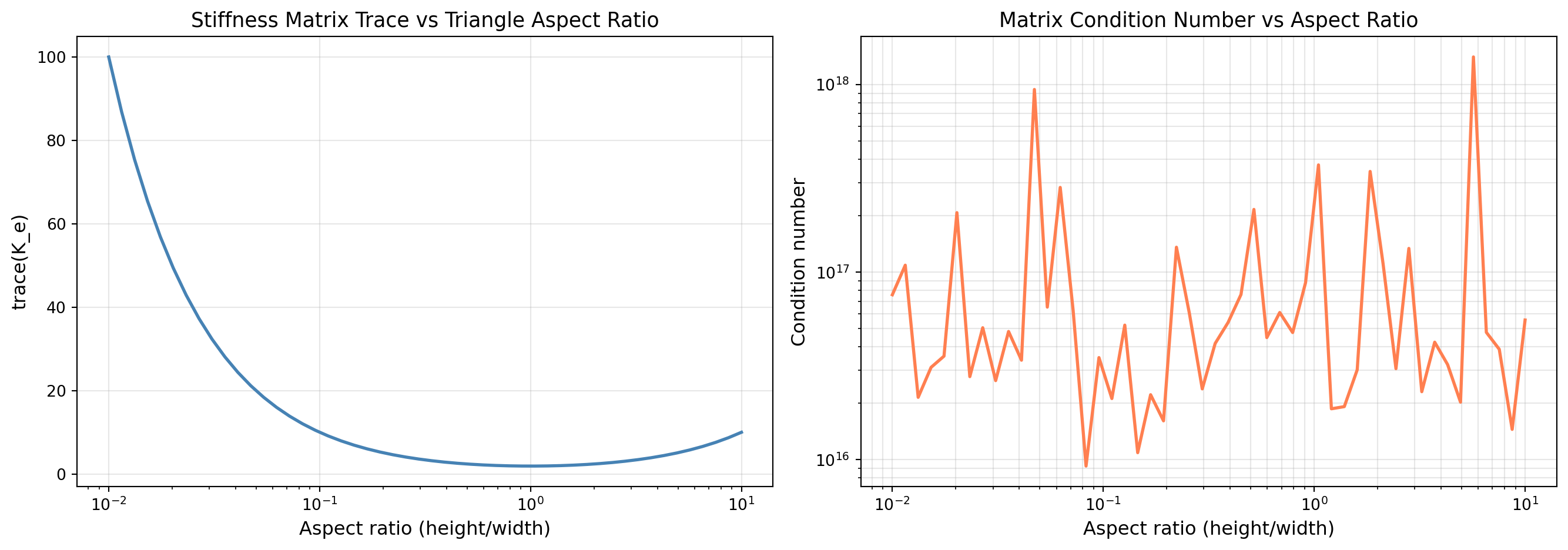

Flat/degenerate 75.0100 50.0000 4.14e+1613.3.1 Visualization: Stiffness vs Aspect Ratio
# Vary the aspect ratio of an isoceles right triangle
aspect_ratios = np.logspace(-2, 1, 50) # 0.01 to 10
traces = []
conditions = []
for ar in aspect_ratios:
# Right triangle with legs of length 1 and ar
Ke = np.array(ke_fn_2d(0, 0, 1, 0, 0, ar), dtype=float)
traces.append(np.trace(Ke))
conditions.append(np.linalg.cond(Ke))
fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(14, 5))
# Trace
ax1.semilogx(aspect_ratios, traces, linewidth=2, color='steelblue')
ax1.set_xlabel('Aspect ratio (height/width)', fontsize=12)
ax1.set_ylabel('trace(K_e)', fontsize=12)
ax1.set_title('Stiffness Matrix Trace vs Triangle Aspect Ratio', fontsize=13)
ax1.grid(True, alpha=0.3)
# Condition number
ax2.loglog(aspect_ratios, conditions, linewidth=2, color='coral')
ax2.set_xlabel('Aspect ratio (height/width)', fontsize=12)
ax2.set_ylabel('Condition number', fontsize=12)
ax2.set_title('Matrix Condition Number vs Aspect Ratio', fontsize=13)
ax2.grid(True, alpha=0.3, which='both')
plt.tight_layout()
plt.show()
print(f"\nCondition number range: {np.min(conditions):.2e} to {np.max(conditions):.2e}")
print(f"Trace range: {np.min(traces):.4f} to {np.max(traces):.4f}")
Condition number range: 9.25e+15 to 1.41e+18
Trace range: 2.0022 to 100.010013.4 Exercise
Condition number analysis:
- Why does the condition number increase dramatically for very thin or very tall triangles?
- What does this tell you about the numerical stability of solving systems with K_e for distorted elements?
- Propose a mesh quality metric based on the aspect ratio that would flag problematic elements.
# Optional: Implement a mesh quality metric
# (Student exercise)
def element_quality_metric(x1, y1, x2, y2, x3, y3):
"""
Define a quality metric for a triangle element.
Some options:
- aspect ratio
- minimum angle
- area-to-perimeter ratio
"""
pass
print("Exercise: Implement element_quality_metric() above and rank the test triangles.")Exercise: Implement element_quality_metric() above and rank the test triangles.
