7  From 1D to Multi-Dimensional FEM

TipCompanion notebooks

Work through these hands-on notebooks alongside this chapter:

7.1 Mathematical Preliminaries

Looking at the following equation:

\[ \text{div}(\mathbf{K}\cdot \text{grad}(T)) \]

if \(\mathbf{K}\) is a constant multiplied by the identity matrix, we can write it as:

\[ \text{div}(\mathbf{K}\cdot \text{grad}(T)) = \text{div}(\mathbf{K} \left [\frac{\partial T}{\partial x} \mathbf{e}_1 +\frac{\partial T}{\partial y} \mathbf{e}_2+\frac{\partial T}{\partial z} \mathbf{e}_3 \right ]) = \mathbf{K} \left ( \frac{\partial^2 T}{\partial x^2}+\frac{\partial^2 T}{\partial y^2}+\frac{\partial^2 T}{\partial z^2} \right) = \mathbf{K}\nabla^2T \]

7.1.1 Temperature as a Scalar Field

\[ T \text{ - Scalar} \Rightarrow \text{grad}(T) = \left(\frac{\partial T}{\partial x}\mathbf{e_1} + \frac{\partial T}{\partial y}\mathbf{e_2} + \frac{\partial T}{\partial z}\mathbf{e_3}\right) \text{ - vector} \]

7.1.2 Conductivity Matrix Operation

\[ \mathbf{K} \cdot \text{grad}(T) = \begin{bmatrix} K_{11} & K_{12} & K_{13} \\ K_{21} & K_{22} & K_{23} \\ K_{31} & K_{32} & K_{33} \end{bmatrix} \text{transpose}\left(\left(\frac{\partial T}{\partial x}\mathbf{e_1} + \frac{\partial T}{\partial y}\mathbf{e_2} + \frac{\partial T}{\partial z}\mathbf{e_3}\right)\right) \]

7.1.3 Heat Flux Vector

Let’s define \(\mathbf{q} = -\mathbf{K} \cdot \text{grad}(T)\) as the heat flux vector.

Divergence of heat flux:

\[ \text{div}(\mathbf{q}) = \frac{\partial q_x}{\partial x} + \frac{\partial q_y}{\partial y} + \frac{\partial q_z}{\partial z} \]

7.2 The Product Rule for Divergence

To answer the question “What happens when we multiply the heat conduction equation by a test function V?”, we need to use the product rule for divergence:

\[ \text{div}(V \mathbf{K} \text{ grad}(T)) = \text{grad}(V) \cdot \mathbf{K} \cdot \text{grad}(T) + V \text{ div}(\mathbf{K} \cdot \text{grad}(T)) \]

However, if \(\mathbf{K}=k\) is constant, we can simplify this to:

\[ \text{div}(V \mathbf{K} \text{ grad}(T))=k\text{div}(V \text{ grad}(T))=k(\text{grad}(V) \cdot \text{grad}(T) + V \nabla^2(T)) \]

7.2.1 Detailed Expansion

Let’s expand \(\text{div}(V \mathbf{K} \text{ grad}(T))\) step by step:

\[\text{div}(V \mathbf{K} \text{ grad}(T)) = \frac{\partial}{\partial x}\left(V K \frac{\partial T}{\partial x}\right) + \frac{\partial}{\partial y}\left(V K \frac{\partial T}{\partial y}\right) + \frac{\partial}{\partial z}\left(V K \frac{\partial T}{\partial z}\right)\]

Applying the product rule to each term:

\[ = \frac{\partial V}{\partial x} K \frac{\partial T}{\partial x} + \frac{\partial V}{\partial y} K \frac{\partial T}{\partial y} + \frac{\partial V}{\partial z} K \frac{\partial T}{\partial z} + V K \frac{\partial^2 T}{\partial x^2} + V K \frac{\partial^2 T}{\partial y^2} + V K \frac{\partial^2 T}{\partial z^2} \]

We can group these terms into two parts:

Gradient Terms:

\[ \text{grad}(V) \cdot \mathbf{K} \cdot \text{grad}(T) = \left(\frac{\partial V}{\partial x}, \frac{\partial V}{\partial y}, \frac{\partial V}{\partial z}\right) \cdot \mathbf{K} \cdot \left(\frac{\partial T}{\partial x}, \frac{\partial T}{\partial y}, \frac{\partial T}{\partial z}\right) \]

For constant K, this becomes:

\[ = K\left(\frac{\partial V}{\partial x} \frac{\partial T}{\partial x} + \frac{\partial V}{\partial y} \frac{\partial T}{\partial y} + \frac{\partial V}{\partial z} \frac{\partial T}{\partial z}\right) = A \]

Second Derivative Terms:

\[ V \text{ div}(\mathbf{K} \cdot \text{grad}(T)) = V K \left(\frac{\partial^2 T}{\partial x^2} + \frac{\partial^2 T}{\partial y^2} + \frac{\partial^2 T}{\partial z^2}\right) = B \]

7.2.2 The Key Relationship

From the product rule, we have:

\[ \text{div}(V \mathbf{K} \text{ grad}(T)) = A + B \]

Therefore:

\[ B = \text{div}(V \mathbf{K} \text{ grad}(T)) - A \]

Which gives us:

\[ \text{div}(\mathbf{K} \text{ grad}(T)) V = \text{div}(V \mathbf{K} \text{ grad}(T)) - \text{grad}(V) \cdot \mathbf{K} \cdot \text{grad}(T) \]

7.2.3 Physical Interpretation

This mathematical identity is the foundation for:

  1. Integration by parts in the weak formulation
  2. Converting strong form to weak form in finite element methods
  3. Moving derivatives from the solution to the test function

The term \(\text{div}(V \mathbf{K} \text{ grad}(T))\) will become a boundary integral when integrated over the domain, while \(\text{grad}(V) \cdot \mathbf{K} \cdot \text{grad}(T)\) becomes the bilinear form in the finite element formulation.

7.2.4 Weak Form Foundation

When integrated over a domain \(\Omega\), this relationship becomes:

\[\int_\Omega V \text{ div}(\mathbf{K} \text{ grad}(T)) \, d\Omega = \int_\Omega \text{div}(V \mathbf{K} \text{ grad}(T)) \, d\Omega - \int_\Omega \text{grad}(V) \cdot \mathbf{K} \cdot \text{grad}(T) \, d\Omega\]

Using the divergence theorem, the first integral on the right becomes a boundary integral, leading to the standard weak form used in finite element analysis.

7.3 FEM in 2D/3D: Heat Equation

7.3.1 Problem Setup

Governing equation: \(\text{div}(\mathbf{q}) = 0\) where we assumed that there is no source term for simplicity.

Constitutive equation (Fourier’s law): \(\mathbf{q} = -\mathbf{K} \cdot \text{grad}(T)\)

Boundary conditions:

  • \(\Gamma_{T_0}: T = T_0\) (Essential BC)
  • \(\Gamma_{T_1}: T = T_1\) (Essential BC)
  • \(\Gamma_q: \mathbf{q} = \mathbf{q}^*_n\) (Natural BC)

where \(\mathbf{q}^*_n\) is the prescribed heat flux on the boundary \(\Gamma_q\) in the direction of the (outwards) normal to the surface.

Combined form: \(\text{div}(\mathbf{q}) = -\text{div}(\mathbf{K} \cdot \text{grad}(T)) = 0\)

7.4 Weak Form Derivation

Step 1: Multiply by test function V and integrate over domain

\[\int_\Omega \text{div}(\mathbf{K} \cdot \text{grad}(T)) V \, d\Omega = 0\]

Step 2: Apply the product rule result

\[\int_\Omega \text{div}(V \mathbf{K} \cdot \text{grad}(T)) \, d\Omega - \int_\Omega \text{grad}(V) \cdot \mathbf{K} \cdot \text{grad}(T) \, d\Omega = 0\]

Step 3: Apply divergence theorem to first integral

\[\int_\Omega \text{div}(V \mathbf{K} \cdot \text{grad}(T)) \, d\Omega = \int_\Omega \text{div}(V \mathbf{q}) \, d\Omega = \int_{\partial\Omega} V \mathbf{q} \cdot \mathbf{n} \, d\Gamma\]

Final weak form:

\[\int_{\partial\Omega} V \mathbf{q} \cdot \mathbf{n} \, d\Gamma - \int_\Omega \text{grad}(V) \cdot \mathbf{K} \cdot \text{grad}(T) \, d\Omega = 0\]

Finite element approximation:

\[V_h = \sum_{i=1}^N b_i \phi_i(x,y), \quad T_h = \sum_{j=1}^N a_j \phi_j(x,y) \Rightarrow \{a_j\}\]

7.5 2D/3D Finite Elements: Geometry and Shape Functions

7.5.1 Transition from 1D to 2D/3D

Key differences:

  • 1D: Geometric description is simpler - element domain is simply a line
  • 2D/3D: Geometry plays a crucial role and complexity increases significantly

Most common finite element geometries:

  • 2D: Triangular elements and Rectangular elements
  • 3D: Tetrahedron elements and Hexahedron elements

7.5.2 2D Rectangular Elements: Linear Shape Functions

Design requirements for shape functions:

  • Simplicity: Describe change in the element’s domain with minimal complexity
  • Local support: Each shape function corresponds to one node, value of “1” at one node, “0” at all other nodes

1D analogy: \(u^e = a_i \phi_i^g + a_{i+1} \phi_{i+1}^g\) (where \(u^e \in [x_i, x_{i+1}]\))

2D extension: For a linear rectangular element, we need four shape functions to describe \(u^e\)

7.5.3 Rectangular Element with Linear Shape Functions

Consider a rectangular element with nodes numbered as follows:

4 ────── 3
│        │  b
│   ue   │
│        │
1 ────── 2
    a

Shape functions for specific rectangular element:

\[\phi_1^g = \frac{1}{ab}(a-x)(b-y)\]

\[\phi_2^g = \frac{1}{ab}x(b-y)\]

\[\phi_3^g = \frac{1}{ab}xy\]

\[\phi_4^g = \frac{1}{ab}(a-x)y\]

Verification:

  • \(\phi_1^g(0,0) = 1\), \(\phi_1^g(a,0) = 0\), \(\phi_1^g(0,b) = 0\), \(\phi_1^g(a,b) = 0\)
  • \(\phi_2^g(0,0) = 0\), \(\phi_2^g(a,0) = 1\), \(\phi_2^g(0,b) = 0\), \(\phi_2^g(a,b) = 0\)

Element solution: \(u^e = a_1 \phi_1^g + a_2 \phi_2^g + a_3 \phi_3^g + a_4 \phi_4^g = u^e(x,y)\)

7.6 Master Element Concept in 2D

7.6.1 Mapping to Master Element

Purpose: Map general elements to a standardized master element for easier computation

Coordinate transformation: \([x,y] \rightarrow [\zeta_1, \zeta_2] \in [-1,1] \times [-1,1]\)

Master element node numbering convention:

4 ────── 3   z2
│        │    ^
│        │    |
│        │    |
1 ────── 2    +-> z1

Master element shape functions:

\[\hat{\phi}_1 = \phi_1^e(\zeta_1, \zeta_2) = \frac{1}{4}(1-\zeta_1)(1-\zeta_2)\]

\[\hat{\phi}_2 = \phi_2^e(\zeta_1, \zeta_2) = \frac{1}{4}(1+\zeta_1)(1-\zeta_2)\]

\[\hat{\phi}_3 = \phi_3^e(\zeta_1, \zeta_2) = \frac{1}{4}(1+\zeta_1)(1+\zeta_2)\]

\[\hat{\phi}_4 = \phi_4^e(\zeta_1, \zeta_2) = \frac{1}{4}(1-\zeta_1)(1+\zeta_2)\]

Bi-linear nature: Each \(\hat{\phi}_i\) equals “1” at the \(i\)-th node and “0” at other nodes, creating bi-linear shape functions.

Example expansion: \(\hat{\phi}_1 = \frac{1}{4}(1-\zeta_1)(1-\zeta_2) = \frac{1}{4}(1-\zeta_1-\zeta_2+\zeta_1\zeta_2)\)

The term \(\zeta_1\zeta_2\) makes it bi-linear (linear in both coordinates).

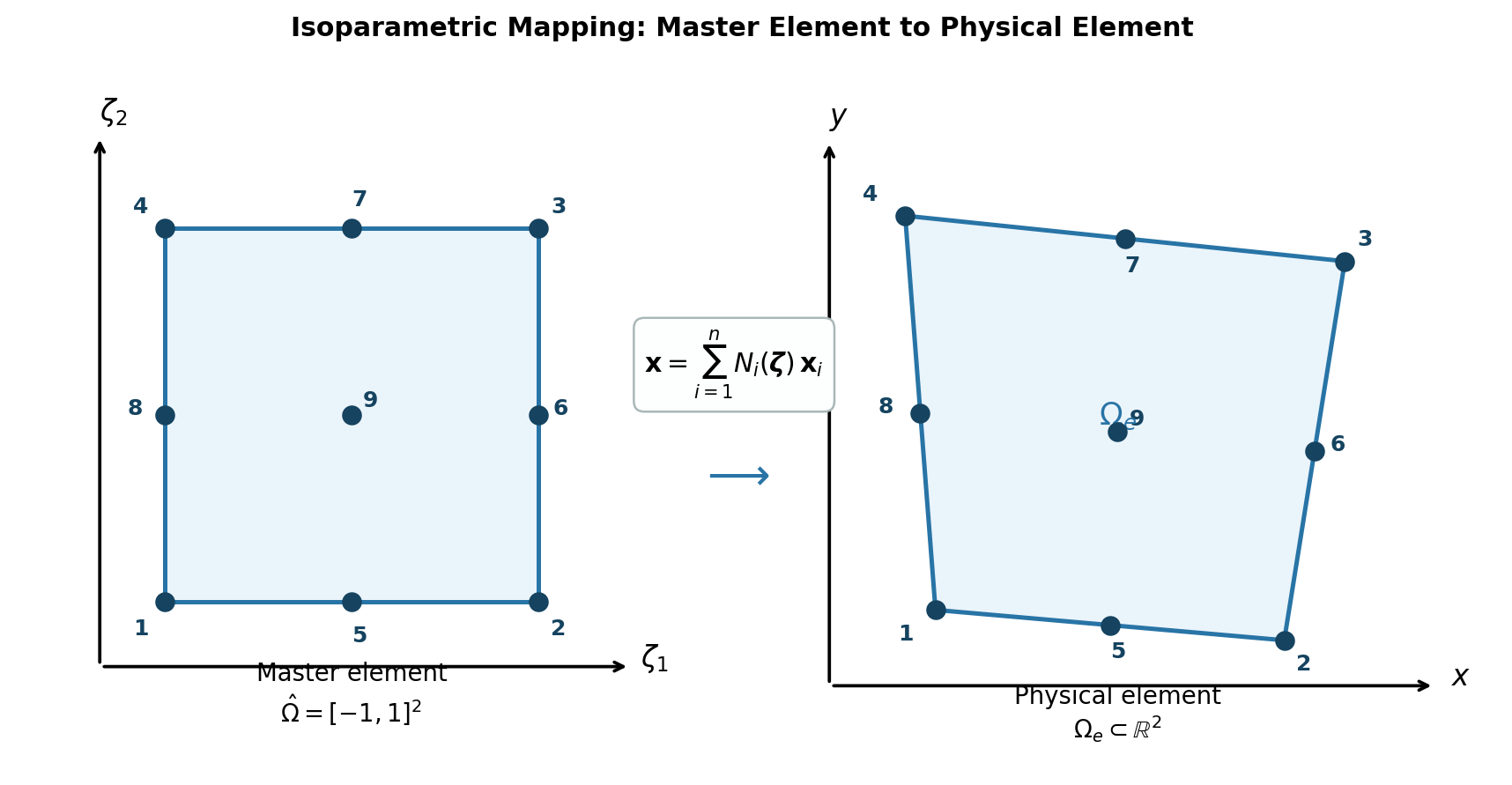

Figure 7.1: Isoparametric mapping from the master element \(\hat{\Omega}=[-1,1]^2\) in reference coordinates \((\zeta_1,\zeta_2)\) to a physical element \(\Omega_e\) in global coordinates \((x,y)\) via the interpolation \(\mathbf{x}=\sum_i N_i(\boldsymbol{\zeta})\,\mathbf{x}_i\).

7.7 Jacobian and Coordinate Transformation

7.7.1 Jacobian Matrix

Definition:

\[\mathbf{F} = \begin{bmatrix} \frac{\partial x}{\partial \zeta_1} & \frac{\partial x}{\partial \zeta_2} \\ \frac{\partial y}{\partial \zeta_1} & \frac{\partial y}{\partial \zeta_2} \end{bmatrix}, \quad J = \text{Det}(\mathbf{F}) = \frac{\partial x}{\partial \zeta_1}\frac{\partial y}{\partial \zeta_2} - \frac{\partial x}{\partial \zeta_2}\frac{\partial y}{\partial \zeta_1}\]

Critical requirement: \(J > 0\) throughout the element for a “good” mapping

7.7.2 Isoparametric Mapping

We will use isoparametric mapping, where the same shape functions are used for both geometry and field variables.

Coordinate transformation:

\[x (\chi_1,\chi_2)= \sum_{i=1}^4 \chi_{1i} \hat{\phi}_i = \chi_{11}\hat{\phi}_1 + \chi_{12}\hat{\phi}_2 + \chi_{13}\hat{\phi}_3 + \chi_{14}\hat{\phi}_4\]

\[y(\chi_1, \chi_2) = \sum_{i=1}^4 \chi_{2i} \hat{\phi}_i\]

Where \(\chi_{1i}\) are global x-coordinates and \(\chi_{2i}\) are global y-coordinates of element nodes.

7.8 Element Quality: Good vs Bad Elements

7.8.1 Acceptable Elements

Case 1 - Rectangular element: \(0 < J(\zeta_1, \zeta_2) < \infty\) throughout element

  • Jacobian is constant
  • Acceptable

Case 3 - Distorted but convex: \(0 < J(\zeta_1, \zeta_2) < \infty\) throughout element

  • Jacobian varies but remains positive and bounded
  • Acceptable

7.8.2 Unacceptable Elements

Case 2 - Incorrect node numbering: \(J(\zeta_1, \zeta_2) < 0\) throughout element

  • Nodes numbered incorrectly, turning element “inside out”
  • Unacceptable

Case 4 - Partially negative Jacobian: \(J(\zeta_1, \zeta_2) < 0\) in some regions

  • Can cause singularities in stiffness matrix
  • Unacceptable

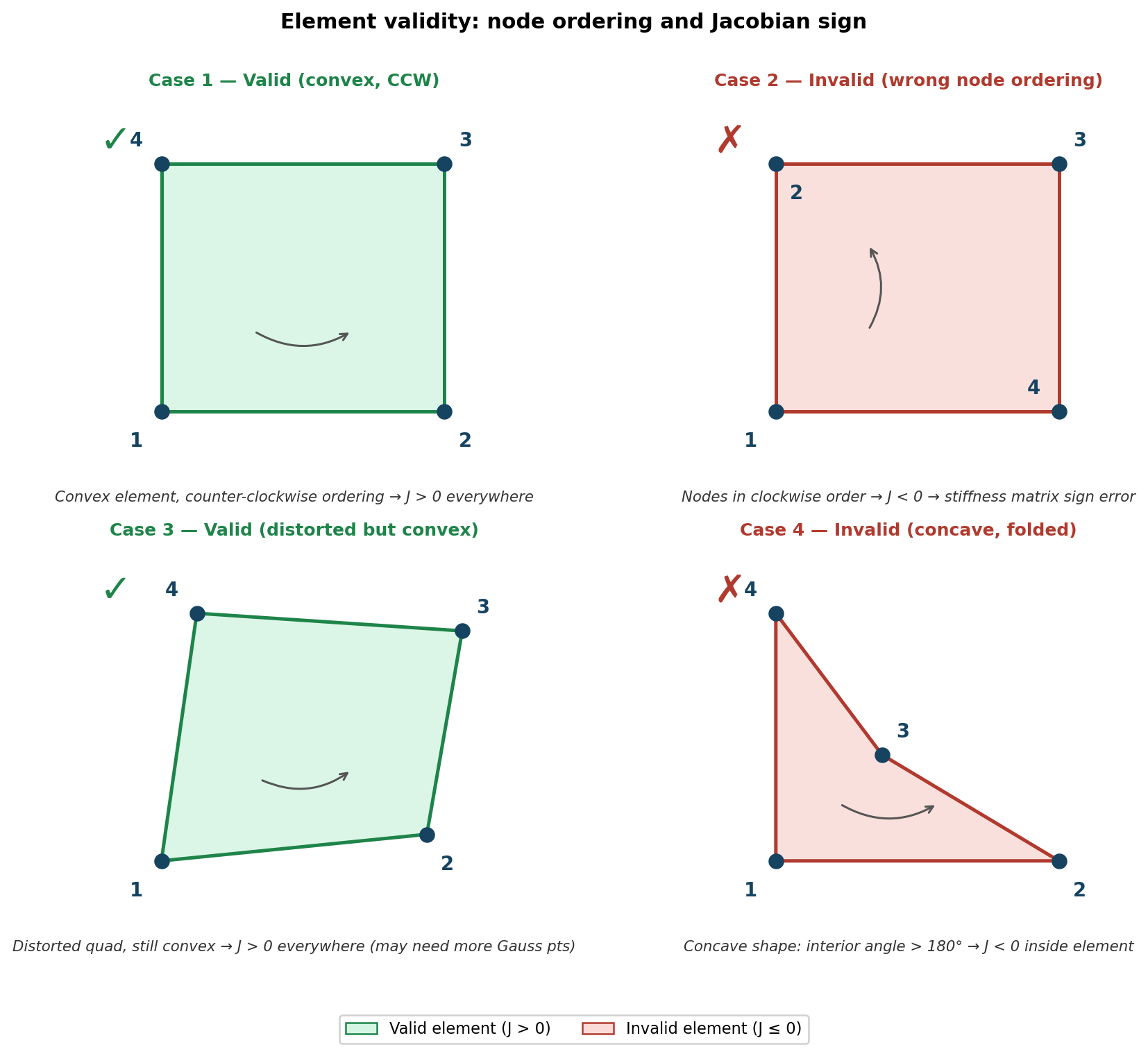

Figure 7.2: Element validity: Cases 1 and 3 are valid (convex, CCW node ordering, \(J>0\) everywhere). Case 2 fails due to clockwise node ordering (\(J<0\)). Case 4 fails because the concave (folded) shape causes \(J<0\) inside the element.

Key insight for linear elements: The primary indicator of problematic elements is non-convexity, even with correct numbering.

7.9 Bookkeeping in 2D Finite Elements

7.9.1 Difference from 1D

1D: Node numbering is intuitive and element connectivity is straightforward

1 ── 2 ── 3 ── 4 ── 5 ── 6 ── 7 ── 8 ── 9

2D: More complex connectivity patterns require systematic bookkeeping

7.9.2 Element Connectivity Tables

Element-to-node connectivity:

Element Node 1 Node 2 Node 3 Node 4
1 20 21 2 1
2 21 22 3 2

Node coordinate table:

Node X-coord Y-coord
1 X₁ Y₁
2 X₂ Y₂

Importance: Essential for assembling the global stiffness matrix \([K_{ij}^g]\) and load vector \(\{F_i^g\}\), and for enforcing boundary conditions.

7.10 Shape Functions: Differential Properties

7.10.1 Coordinate Transformation Relations

Forward transformation (ζ → x):

\[\frac{\partial}{\partial \zeta_1} = \frac{\partial}{\partial x}\frac{\partial x}{\partial \zeta_1} + \frac{\partial}{\partial y}\frac{\partial y}{\partial \zeta_1}\]

\[\frac{\partial}{\partial \zeta_2} = \frac{\partial}{\partial x}\frac{\partial x}{\partial \zeta_2} + \frac{\partial}{\partial y}\frac{\partial y}{\partial \zeta_2}\]

Inverse transformation (x → ζ):

\[\frac{\partial}{\partial x} = \frac{\partial}{\partial \zeta_1}\frac{\partial \zeta_1}{\partial x} + \frac{\partial}{\partial \zeta_2}\frac{\partial \zeta_2}{\partial x}\]

\[\frac{\partial}{\partial y} = \frac{\partial}{\partial \zeta_1}\frac{\partial \zeta_1}{\partial y} + \frac{\partial}{\partial \zeta_2}\frac{\partial \zeta_2}{\partial y}\]

Matrix form:

\[\begin{bmatrix} dx \\ dy \end{bmatrix} = \mathbf{F} \begin{bmatrix} d\zeta_1 \\ d\zeta_2 \end{bmatrix}, \quad \begin{bmatrix} d\zeta_1 \\ d\zeta_2 \end{bmatrix} = \mathbf{F}^{-1} \begin{bmatrix} dx \\ dy \end{bmatrix}\]

7.10.2 Gradient Calculation in Master Element

For test function V:

\[\text{grad}(V) = \begin{bmatrix} \frac{\partial V}{\partial x} \\ \frac{\partial V}{\partial y} \end{bmatrix} = \begin{bmatrix} \frac{\partial \zeta_1}{\partial x} & \frac{\partial \zeta_2}{\partial x} \\ \frac{\partial \zeta_1}{\partial y} & \frac{\partial \zeta_2}{\partial y} \end{bmatrix}^T \begin{bmatrix} \frac{\partial V}{\partial \zeta_1} \\ \frac{\partial V}{\partial \zeta_2} \end{bmatrix}\]

For temperature field T:

\[\text{grad}(T) = \begin{bmatrix} \frac{\partial T}{\partial x} \\ \frac{\partial T}{\partial y} \end{bmatrix} = \begin{bmatrix} \frac{\partial \zeta_1}{\partial x} & \frac{\partial \zeta_2}{\partial x} \\ \frac{\partial \zeta_1}{\partial y} & \frac{\partial \zeta_2}{\partial y} \end{bmatrix}^T \begin{bmatrix} \frac{\partial T}{\partial \zeta_1} \\ \frac{\partial T}{\partial \zeta_2} \end{bmatrix}\]
